Types of network topology in computer system

Introduction

Computer network topology describes the arrangement of devices and communication links inside a data network. Understanding computer network topology helps engineers plan how computers, printers, servers, and other devices connect and share information. A clear structure guides cable layout, signal flow, and device placement across offices, campuses, and data rooms. Network teams rely on topology diagrams to design systems that move data quickly and reduce faults during daily work. Good planning also supports future growth since new devices can join the network without major redesign. This article explains the main forms of computer network topology and shows how each structure works in real digital environments used by schools, firms, labs, and homes today.

Image related to Types of network topology in computer system

Understanding computer network topology structures

Computer network topology structures describe both the physical layout of cables and devices and the logical path that data follows between machines. Physical layout shows where switches, routers, and computers sit inside rooms or buildings. Logical layout explains how signals travel through ports and links when one device sends data to another device. A network may appear simple on a floor plan yet data may pass through several switching stages before it reaches the final system. Engineers sketch topology maps before cable work begins so installers follow a clear plan. Careful diagrams reduce wiring mistakes and help support staff trace faults quickly when a link fails or traffic slows during busy hours.

A well planned computer network topology improves data movement and keeps traffic organized across connected systems. Each packet follows a defined route so switches and routers know where to send the signal next. Predictable paths allow network staff to observe traffic load and detect delays early. When traffic grows, teams expand links or divide the network into segments. Clear topology also helps security planning since administrators can place control devices at key points within the network structure.

Importance of topology planning in networks

Thoughtful planning of computer network topology helps an organization build a stable system that can grow with rising demand. Network teams examine device numbers, expected traffic, building layout, and budget before selecting a topology design. Small offices with limited equipment may use simple layouts while large campuses require layered network structures. Good planning also improves troubleshooting because technicians understand how devices connect and how data travels across the system. When a connection fails, support staff follow the topology diagram to locate the fault quickly.

  1. Bus topology
  2. Ring topology
  3. Star topology
  4. Tree topology
  5. Mesh topology

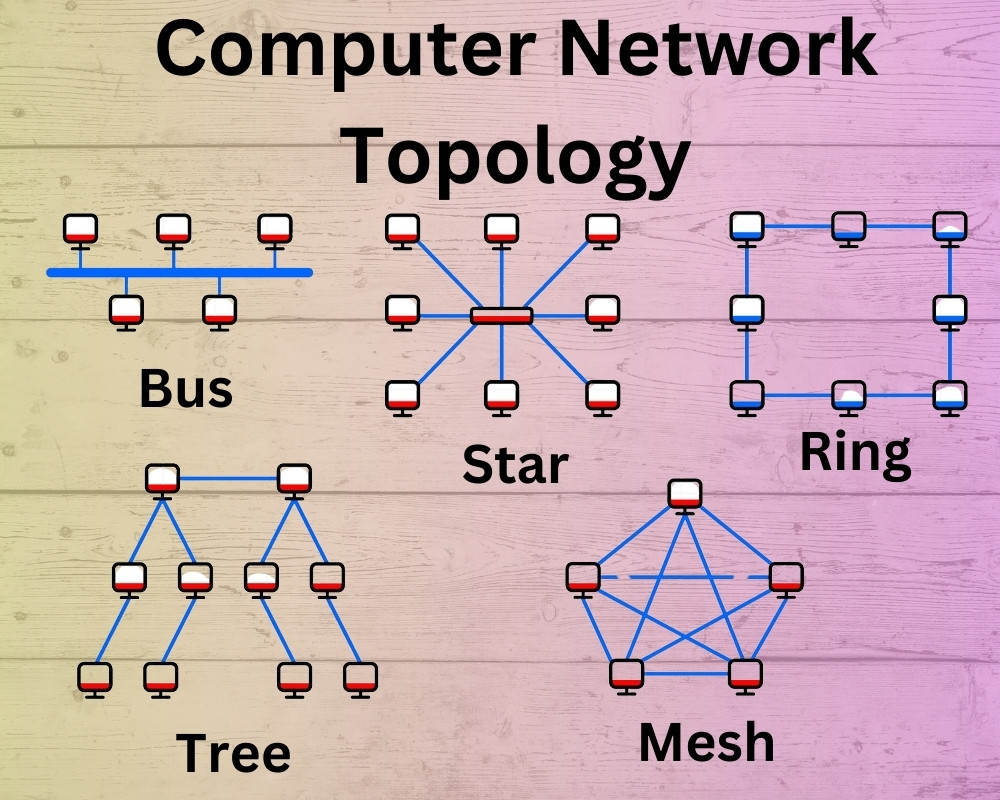

Topology Structure Reliability Typical Use
Bus Single backbone cable Low Small temporary networks
Ring Circular device connection Moderate Token based networks
Star Central hub or switch High Home and office LANs
Tree Hierarchical branching network Moderate Large organizational networks
Mesh Multiple interconnections Very high Internet backbone systems

Bus topology in computer networks

Bus topology connects all devices through a single backbone cable that runs across the network environment. Each computer attaches directly to this cable and uses the same communication path to send and receive information. When a device transmits data, the electrical signal travels along the entire backbone until it reaches every connected system. Each system checks the address contained in the message and decides whether the data belongs to it. Only the intended computer accepts the message while other systems ignore the signal.

Terminators appear at both ends of the backbone cable to absorb electrical signals that reach the cable ends. These small components stop signals from reflecting backward along the cable which could create interference. Because the layout relies on a single cable, installation remains simple and requires less wiring than many other network structures. Early local area networks often used this design because it allowed quick deployment and minimal equipment cost.

Advantages of bus topology

  1. Installation remains simple because one backbone cable connects all devices.
  2. Network setup cost stays relatively low.
  3. The layout works well for small temporary networks.

Disadvantages of bus topology

  1. Failure in the backbone cable stops the entire network.
  2. Heavy traffic slows communication across the shared cable.
  3. Troubleshooting becomes difficult when many devices connect.
Figure 1

Ring topology in computer networks

Ring topology forms a closed loop where every device connects to two neighboring devices. Data travels around the circular path until it reaches the correct destination system. Each device receives the signal and forwards it to the next device in the sequence. This arrangement produces an orderly flow of information because data always moves in one direction around the loop.

Many ring networks operate using a token signal that controls which device may transmit data. A computer waits until it receives the token before sending its message. Once transmission finishes, the device passes the token to the next node along the ring. This process ensures that only one device sends data at a time which prevents collisions on the network.

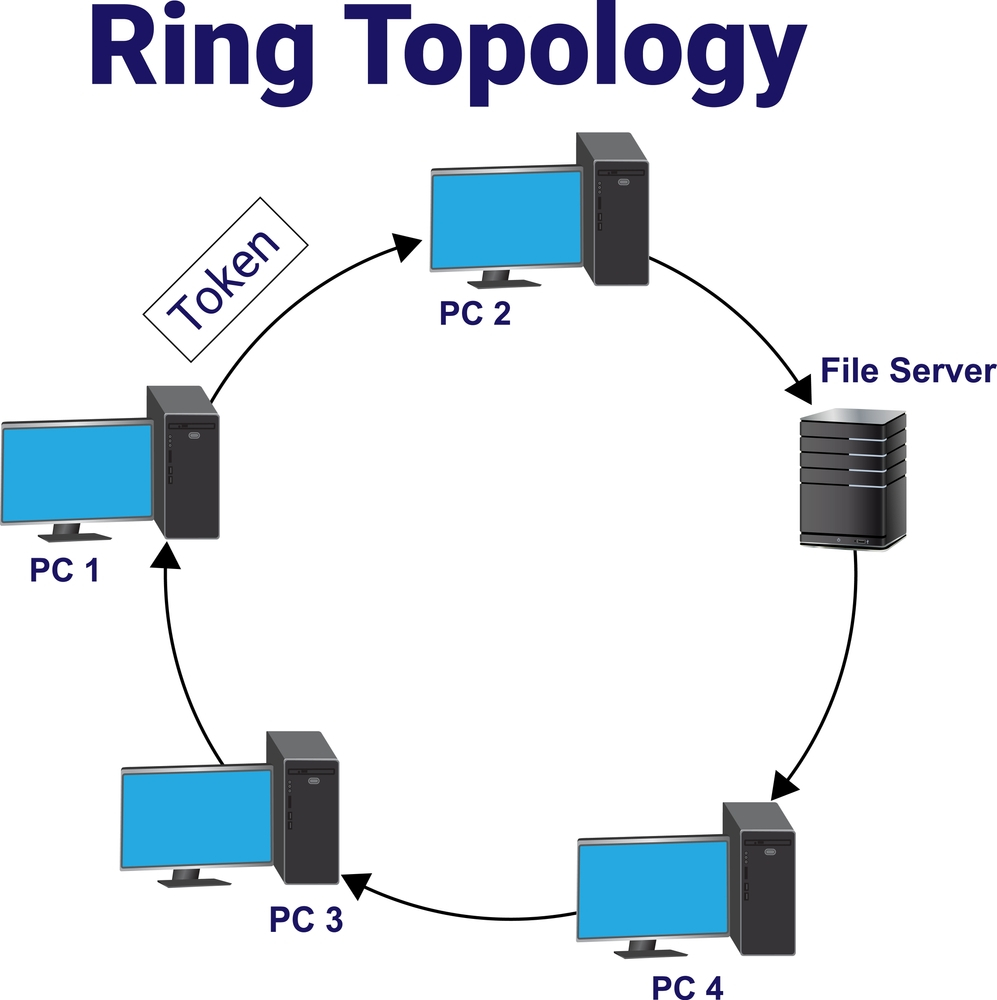

Figure 2

Advantages of ring topology

  1. Each device gains equal opportunity to transmit data.
  2. Data flow remains organized and predictable.

Disadvantages of ring topology

  1. A break in one connection can disrupt the entire network loop.
  2. Adding or removing devices interrupts network operation temporarily.

Star topology in computer networks

Star topology links each device to a central hub or switch which manages the communication process. When one computer sends data, the message travels first to the central device. The hub or switch examines the destination address and forwards the signal to the correct system. Each device maintains its own cable connection with the hub which creates a pattern that resembles a star shape.

This layout appears widely in home networks, office environments, and Ethernet based systems. Because each device connects independently, failure of one cable normally affects only a single computer. Network administrators also find it easier to monitor activity since all communication passes through the central switching device.

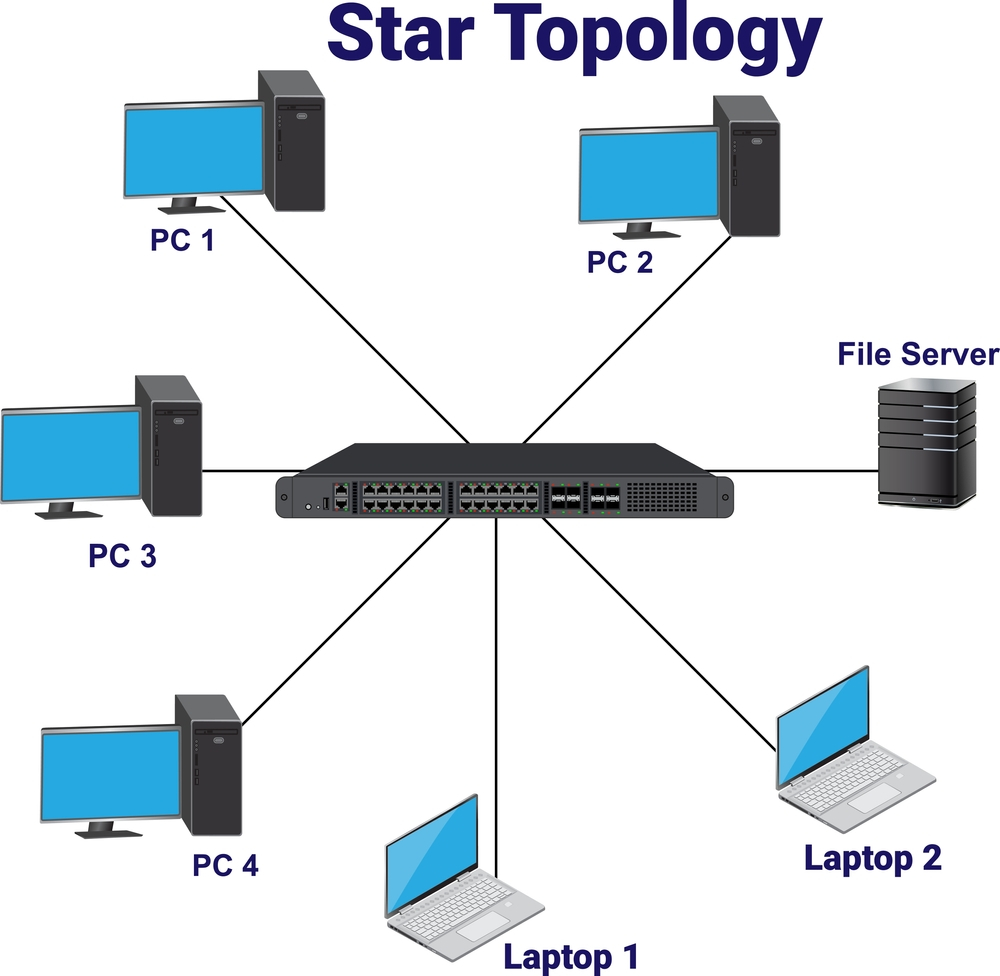

Figure 3

Advantages of star topology

  1. Failure of one cable rarely disrupts other connections.
  2. Administrators locate faults quickly.
  3. New devices connect easily to the network.

Disadvantages of star topology

  1. The central hub becomes a critical single point of failure.
  2. More cabling increases installation costs.

Tree topology in computer networks

Tree topology combines elements of bus and star layouts to create a hierarchical network structure. Multiple star networks connect to a backbone cable that forms the trunk of the tree. Each branch represents a group of computers connected through switches or hubs. This design allows administrators to divide the network into smaller segments while maintaining communication across the whole organization.

Large offices and campuses often rely on this structure because departments can operate on separate branches. Network managers control each segment while the backbone carries traffic between groups. The layered layout supports organized growth when new branches appear.

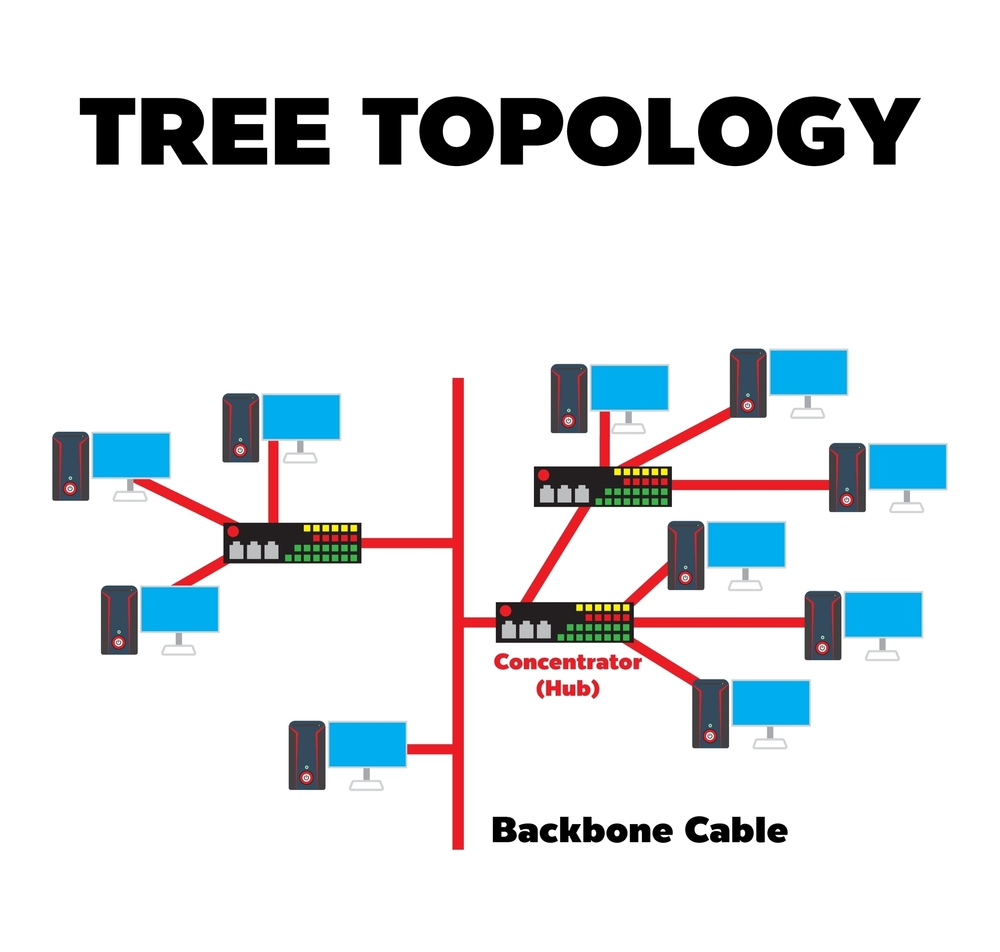

Figure 4

Advantages of tree topology

  1. Network expansion remains flexible through new branches.
  2. Departments organize devices logically.
  3. Hierarchical structure simplifies management.

Disadvantages of tree topology

  1. Failure of the backbone cable disrupts large network sections.
  2. Configuration becomes more complex.

Mesh topology in computer networks

Mesh topology connects devices through multiple direct communication links. Each node may connect with several other nodes which creates many possible paths for data movement. When one link fails, traffic travels through another path which keeps the network active. This redundancy provides strong reliability and stable communication for critical systems.

  • In a mesh topology, every node has a dedicated point-to-point link to every other node.
  • A fully connected mesh network has `ntimesleft(frac{n-1}2right)` physical links to link n devices.
  • For five connected nodes we need `5timesleft(frac{5-1}2right)` links which equals ten connections.

Internet backbone networks and large data systems often rely on mesh connections because downtime can disrupt essential services. Multiple paths distribute network traffic across many links which improves performance and reliability.

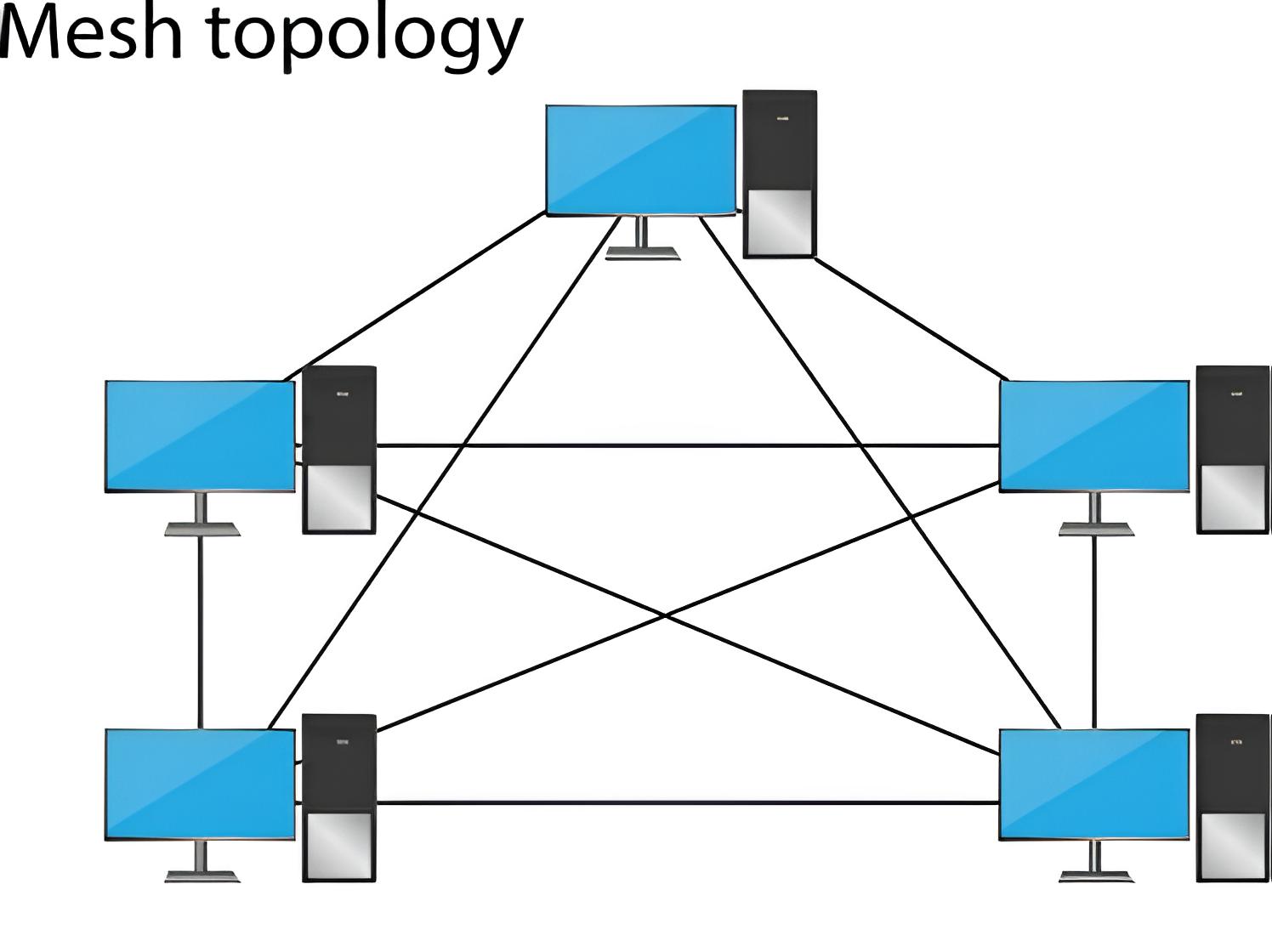

Figure 5

Advantages of mesh topology

  1. Multiple connections increase reliability.
  2. Network traffic distributes across several paths.

Disadvantages of mesh topology

  1. Large amount of cabling increases cost.
  2. Installation and maintenance remain complex.
  3. Hardware requirements grow significantly.

Conclusion

Computer network topology plays a key role in the design of reliable communication systems. Engineers study computer network topology patterns before building network infrastructure so devices exchange data efficiently. Each topology offers unique strengths that suit different environments and technical needs. Bus layouts serve small networks, star structures dominate modern offices, tree designs support large organizations, ring systems maintain orderly data flow, and mesh networks provide strong reliability. Understanding computer network topology helps administrators design scalable systems that support communication, collaboration, and data exchange across modern digital environments.
