EMF Equation of a Transformer

Shukla Dhaval By Shukla Dhaval

Introduction

The EMF Equation of a Transformer explains how voltage appears in transformer windings. The EMF Equation of a Transformer helps engineers understand energy transfer between coils. This principle guides the design of reliable power equipment used in electrical networks.

Transformers move electrical energy between circuits without direct electrical contact. They use electromagnetic induction to transfer energy through a magnetic field. This process allows safe voltage conversion in power systems.

Electric power networks depend on transformers for efficient energy distribution. Generating stations produce power at moderate voltage levels. Transformers raise or lower voltage so electricity travels safely through transmission and distribution networks.

Understanding Electromotive Force

Electromotive force represents the voltage produced by electromagnetic induction. Engineers measure electromotive force in volts across electrical circuits. EMF drives current through conductors and electrical devices.

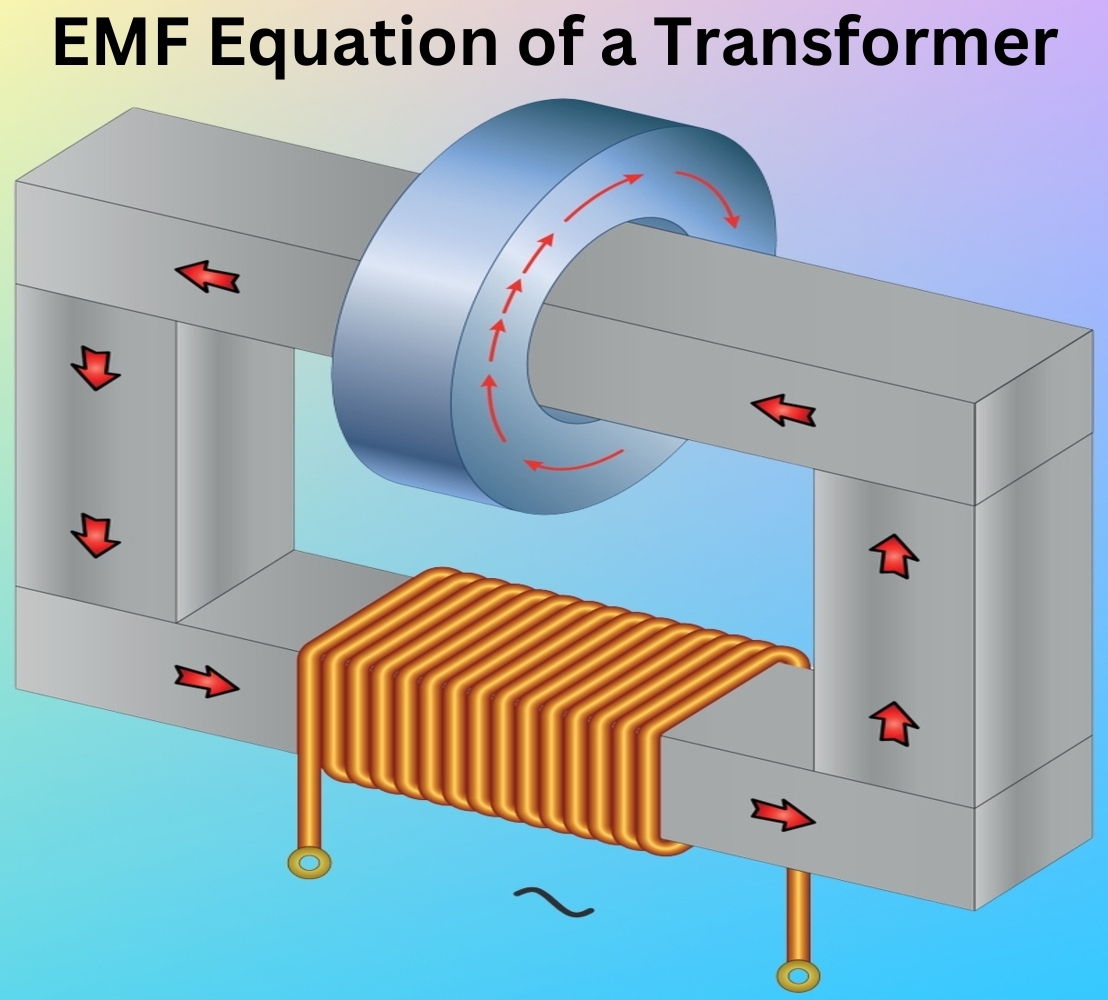

In transformers, EMF appears in windings when magnetic flux changes. Alternating current in the primary winding produces changing magnetic flux. This varying flux links both primary and secondary windings.

The changing magnetic field induces voltage in nearby windings. This effect follows the law of electromagnetic induction discovered by Faraday. Transformers rely on this principle for efficient power transfer.

Magnetic cores guide the flux through both windings inside the transformer. A well designed core reduces energy loss and improves coupling between coils. Strong coupling increases energy transfer efficiency.

Engineers calculate induced voltage through the EMF equation. This equation links magnetic flux, frequency, and winding turns. Accurate calculation ensures stable transformer operation.

EMF Equation of a Transformer

The EMF equation describes voltage induced in transformer windings due to changing magnetic flux. Each winding experiences induced voltage depending on its number of turns. Frequency and magnetic flux also influence the induced voltage.

Before deriving the EMF equation, engineers define key transformer variables. These values describe magnetic flux, frequency, winding turns, and voltage. Each term plays an important role in transformer analysis.

Let `N_1` = Number of turns in primary
`N_2` = Number of turns in secondary
`F_m` = Maximum flux in the core in webers
`B_m` = Flux density in weber/sq m (Tesla)
A = Net cross-sectional area of core in sq m
f = Frequency of ac input in Hz
`V_1` = Instantaneous value of applied voltage in primary winding in volts
`V_1m` = Maximum value of applied voltage in volts
The instantaneous value of counter electromotive force `e_1` is
`e_1=-N_1left(frac{dPhi}{dt}right)`
As discussed above the counter emf `e_1` is equal and opposite to applied voltage `v_1`, i.e.
`v_1=N_1left(frac{dPhi}{dt}right)`
If the applied voltage is sinusoidal, that is
`v_1=v_1msinleft(2πftright)`
Then `Phi=Phi_msinleft(2πftright)`
Hence `e_1=-N_1Phi_mcosleft(2πftright)times2πf`
These equations are expressed as vectors.where `V_1` and `E_1` are the rms values of `v_1` and `e_1`. To obtain the rms value of counter emf `e_1`, divide its maximum value given above by `sqrt2`.
Then `E_1=left(frac{2pi}{sqrt2}right)fN_1Phi_m`
The cosine term has no significance except to derive the instantaneous values.
`E_1=4.44fN_1Phi_m`
`E_1=4.44fN_1B_mA`
Similarly rms value of emf induced in secondary is,
`E_2=4.44fN_2B_mA`
In an ideal transformer
`E_1=V_1`
`E_2=V_2` (where `V_2` is the secondary terminal voltage)

Key Components of the EMF Equation

1. Voltage Transformation Ratio

Voltage transformation ratio describes the relationship between primary and secondary voltages. This ratio depends on the number of turns in each winding. Engineers use this ratio to design step up and step down transformers.

When the secondary winding contains more turns than the primary winding, voltage increases. When the secondary winding has fewer turns, voltage decreases. This simple relationship enables flexible power system design.

From the above discussion,we get
`frac{E_2}{E_1}=frac{N_2}{N_1}=K`
This constant is known as voltage transformation ratio.
(a) If `N_2`> `N_1`, i.e., K > 1, then the transformation is called as step-up transformer.
(b) If `N_2` < `N_1`, i.e., K < 1, then the transformer is called as step-down transformer
Again for an ideal transformer
Input = Output
`V_1I_1=V_2I_2` (neglecting `I_µ`)
`frac{I_2}{I_1}=frac{V_1}{V_2}=frac1K`
where `I_1` and `I_2` are primary and secondary currents. Hence the currents are in the inverse ratio of the transformation ratio.

2. Mutual Inductance

Mutual inductance describes interaction between magnetic fields of two coils. Changing current in the primary winding produces changing magnetic flux. This flux links with the secondary winding.

Linked magnetic flux induces voltage across the secondary coil. Energy transfer occurs through this magnetic interaction between windings. Efficient coupling ensures minimal power loss.

Transformer cores help guide magnetic flux through both windings. Laminated steel cores reduce energy loss from eddy currents. Efficient core design improves transformer performance.

3. AC Frequency

AC frequency strongly influences transformer operation and induced voltage. The EMF equation shows that voltage depends on frequency and magnetic flux. Higher frequency produces higher induced voltage.

Power systems operate at fixed frequencies such as 50 Hz or 60 Hz. Transformer design must match these operating frequencies carefully. Incorrect frequency may cause overheating or inefficient performance.

Electrical equipment connected to transformers also depends on correct frequency operation. Stable frequency maintains predictable voltage behavior. Power grids maintain strict frequency control.

Significance of the EMF Equation

1. Voltage Transformation

The EMF equation explains how transformers adjust voltage levels within power systems. Engineers control voltage change by selecting suitable winding turns. Accurate design ensures safe power transmission.

Step up transformers increase voltage before electricity enters transmission lines. Step down transformers reduce voltage before electricity reaches homes and industries. These operations support reliable energy delivery.

2. Efficiency Analysis

Engineers analyze transformer performance using the EMF equation. Voltage relations between windings reveal energy transfer efficiency. Careful design reduces losses inside the transformer.

Losses occur through resistance, magnetic leakage, and heating effects. Engineers design cores and windings carefully to minimize these losses. Efficient transformers support stable power networks.

3. Load Matching

Load matching ensures transformers deliver proper power to connected devices. Engineers use voltage and current relationships to balance electrical loads. Balanced loads improve transformer performance.

Power systems operate with varying demand during daily operation. Transformers must handle load changes without excessive voltage fluctuation. Accurate design ensures reliable operation under these conditions.

Conclusion

The EMF Equation of a Transformer forms the foundation for understanding transformer operation. The EMF Equation of a Transformer explains how magnetic flux creates voltage in transformer windings. Engineers rely on this equation to design safe, efficient, and reliable power equipment.

Modern electrical networks depend on accurate transformer design for energy transmission. Knowledge of electromagnetic induction helps engineers build efficient power infrastructure. Careful application of this equation supports reliable electricity supply for society.
